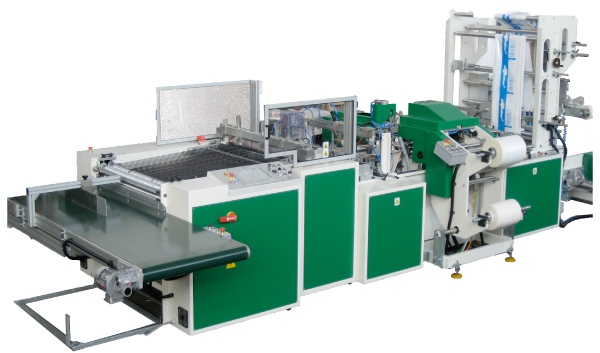

AUTOMATIC BAG-MAKING MACHINE PMC 1100 SH / RB / DT
The machine is equipped with:
- Reel holder, for reel Ø 900 mm., with pneumatic disc brake, electronically controlled by load cell and proportional valve, with pneumatic expansion shaft
- Automatic web guiding device for roll alignment with photocell especially suitable for transparent films
- Printed films photocell with chromatic auto-learning acquisition, automatic auto-learning cut position
- Axis calenders for feeding and tear conveyor with inverter motorization
- Axis calenders Feed and Welding group with Brushless motorization
- Outlet bags conveyor table put on railway for easy moving and easy maintenance in the sealing area
- Main control system with industrial fan less and diskless PC. Touch screen 12" with virtual command. Easy rescue workings parameters (length, speed, temperature and general setup) using recipe archive
- Modular control system with plug-and-play modality (auto ac know learning accessory device installed communication by industrial field bus, with integrated thermoregulation
- "FB" electronic bags brake device, a.c. motor driven with inverter for a perfect stacking of output
- Main electrical equipments in the machine
- Remote tele-assistance standard incorporated in the machine, thus allowing complete remote check up, adjusting the machine parameters, control of all installed drives and software.
ACCESSORIES
- Side welding bar complete of counter teflon roll or heated bar
- Double side welding bar complete, suitable for carrier bags
- Frame for accessories fitting, complete with double inner lip folder, double strip welding device, bottom gusseting device, lateral cut
- SH device for flexible handle application with brushless motors for both diagonals and lower sealing bar; double reels holder, with pneumatic expansion shaft, sealing ring with 4 independent controls.
- RB device for reinforced Handle application, sealing units with 2 independent controls
- LP Lateral heated punching unit with counter brass plate, for Banana type handle., Scraps removal
- DT device for Draw Tape with cut hole and draw handle cut and folded lengthwise from sheet film
- TR Transversal variable speed bags collecting table
MACHINE TECHNICAL FEATURES PMC 1100 SH
- Max reel width 1040 mm
- Max welding width 900 mm
- Mechanical speed 220 shots/min
- Advancement min. 60 mm
- Advancement max. 2000 mm or plus

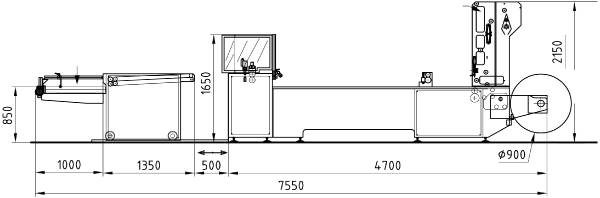

MACHINE INSTALLATION
- Total installed power 37 Kw
- Air consumption at 7 bar is 200 l/min
- Machine weight 2600 Kg
- Conveyor weight 200 Kg
ROLL SOFT HANDLE TECHNICAL FEATURES
- Max reel diameter 500 mm
- Width 350 mm
- Mechanical speed 120 shots/min
- Advancement 30 mm
- Thickness 200 micron
ROLL REINFORCED HANDLE TECHNICAL FEATURES
- Max reel diameter 500 mm
- Width 140 mm
- Mechanical speed 130 shots/min
- Advancement70 mm
- Min. thickness 100 micron
|
|
